SPARK

MAGNETIC TRACKLIGHT
INDOOR LIGHTING
SPK-DF680

Magnetic track system come with RECESSED mount or SURFACE mount version. Module available LED Diffused linear, LED Spot linear, LED Spot light etc. Input Voltage 48VDC.

DIMENSION : 680*22*25mm

Specification

Power
24W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1200LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

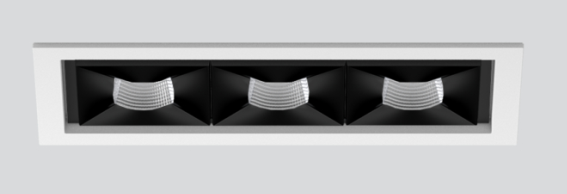

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

LINEALIGHT
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING

Outdoor surface cyclinder downlights come in natural white LED light source with a medium wide distribution and composed of 1 array led. Luminaire body is made of die-cast aluminium EN BA 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear tempered glass. IP65, IK08
