SPARK

Adjustable LED projector with four (4) heads, a yoke allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Each head have a pivot point that also allow 90° tilting relative to the horizontal plane. Mechanical aiming locks for both for rotation about the vertical axis and tilting relative to the horizontal plane. 12 pieces matching adapter / clamp for mounting on a pipe about 5 cm in diameter pro lamp and mounting bracket.

DIMENSION : L278*W401*H230MM

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Spotlight to be installed on ceiling with LED light source. 220-240V, 50-60Hz remote power supply included. Construction material Aluminium. Beam angle 17° Spot

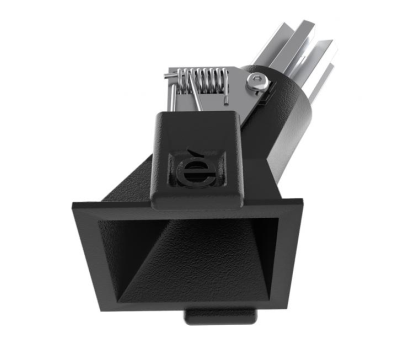

Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary.
