WAKO

Unshielded garden and path luminaire forn effective illumination in private gardens. Luminaire with hand-blown, three-ply opal glass and pleasantly uniform light effect. Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel. IP65,IK03.

Luminaire made of copper and bronze alloy. Matt safety glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection, LED power supply unit 220-240 V x 0/50-60 Hz. DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK10. Protection against mechanical impacts < 20 joule, r – Safety mark, c – Conformity mark.

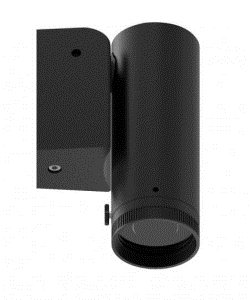

Projector Light round made of aluminium; external 24VDC LED Driver is required; Compatible with On-Off.  System Power 12W; dimensions Ø84mm x 117mm; luminaire's weight is approximately 1150g; CCT 2700K with an System Output of 850lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 24° beam angle; UGR<19; degree of housing protection IP67; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician; including installation stake

Floodlight designed to useWarm White LED lamps and lenses for flood distribution. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy coated with liquid acrylic paint (colour: RAL 9007 grey) or textured liquid paint (colour: RAL 9016 white) with a high level of resistance to atmospheric agents and UV rays. The ingress protection degree is IP66, IK07.
