WAKO

Luminaire made of copper and stainless steel Baseplate made of cast bronze Crystal bubble glass with screw neck Silicone gasket Luminaire with mounting plate for bolting onto a foundation or an anchorage unit Mounting plate with 3 fixing holes ø 8.5 mm · Pitch circle ø 100 mm Mounting bracket with connection box and 3-pole terminal 4@ for connection of mains supply cable max. 3 × 2.5@ Lampholder E 27 Safety class I Protection class IP 64 Dust-tight and protection against splash water r – Safety

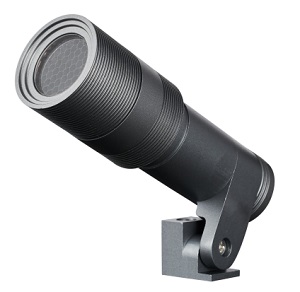

Outdoor floodlight designed to use LED lamps and a spot optic. Consists of an optical assembly and a base. The optical assembly, arm and base are made of aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and a liquid acrylic paint, cured at 150 °C, with a high level of weather resistance.

Cylindrical semi-recessed spotlight made of aluminium; surface black/black (housing/light inset); 360° rotatable and 20° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
