Products

NEKO

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
SENSE 100_G2 S1 SHS1G2-9273025N-BB

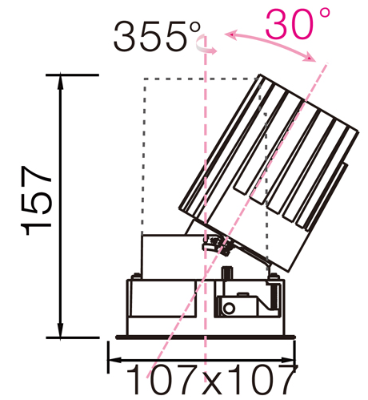

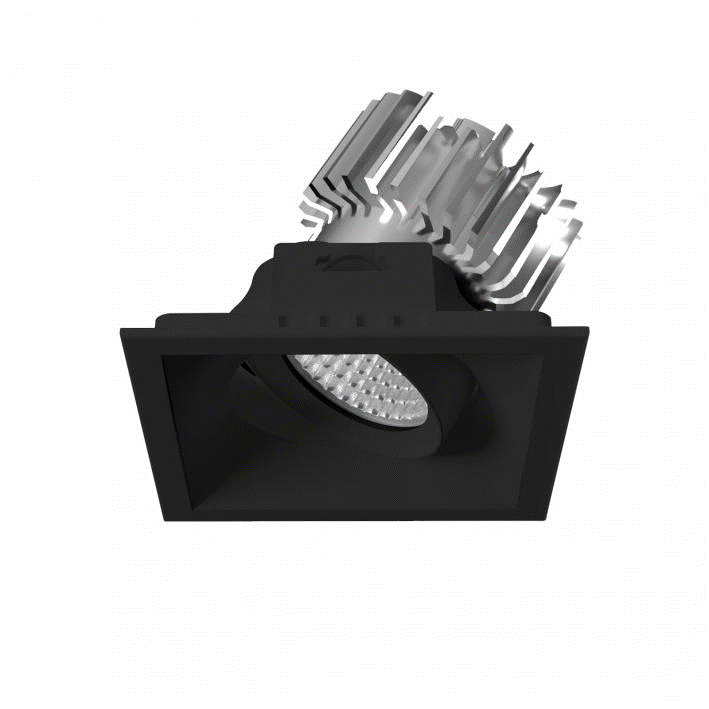

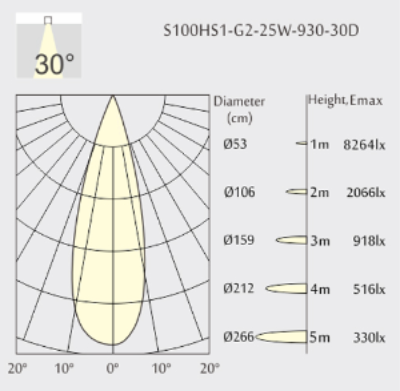

Square recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; System Power 28W; measurements 107mm x 107mm x 157mm; ceiling cutout of 96mm x 96mm with a narrow mounting trim; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1700lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 18° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

Specification

Power
28W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1700LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SPARK
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING

Enhances the aerodynamic performance of lighting fixtures, thereby improving their heat dissipation capabilities and extending their lifespan. Heat dissipation performance is three times of conventional die cast aluminum. Suitable for outdoor semi balcony and canopy application.

LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and color temperatures plus a variety of light engines ranging from static white to RGBW, as well as 10°, 30° or 60° and opal optics to choose from. Polyurethane is utilized in ADONIS ARCHITECTURAL to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminum profile with an IK10 certification.

EWO
POLE LIGHT
OUTDOOR LIGHTING

Housing accommodates 1 LED lighting unit (LED Board: 16 LED)Various light distributions for area, street and walkway lightingCurrent feed: 200 mA–650 mA, depending on ambient temperature Max. Luminous flux [lm] 3,500

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request . Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Colour temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other colour rendering indexes available upon request. IP66


ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING
