NEKO

SURFACE LINEAR LIGHT

INDOOR LIGHTING

DASH 50 Surface_D5S02531-830LPF-BM

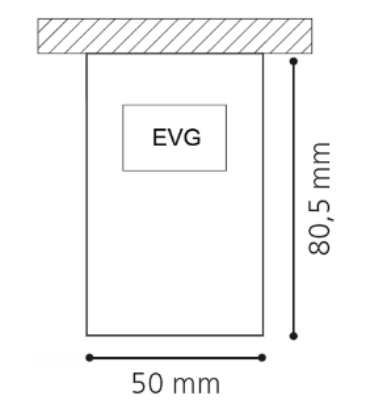

Surface-mounted LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 30W – Low Power; Dimensions of the profile channel (LxWxH): 2531mm x 50mm x 80.5mm; luminaire's weight is approximately 5200g; CCT 3000K with a System Luminous Flux of 3202lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance (UGR<19); degree of housing protection IP20; RG<1 (EN62471); protection class I

Specification

Power

30W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3202LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and CCT plus a variety of light engines ranging from static white to RGBW. Polyurethane is utilized in ADONIS Architectural to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminium profile with an IK10 certification.

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. White finish and honeycomb accessory available upon request.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector.
