TRILUX

PANEL LIGHT

INDOOR LIGHTING

VALINEOG4_ 8423240

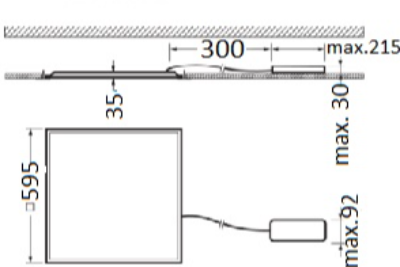

Recessed luminaire with microprismatic cover (600*600mm). lay in luminaire for ceilings with exposed grids, the luminaire is also suitable for surface mount installation with an accessory. Luminaire frame made of aluminium and rear body made of sheet steel. Microprismatic cover of PMMA with narrow wide light distribution. Glare evaluation <UGR19, suitable for workstations with computer screens, offices, corridors, foyers, conference room, retail areas and waiting zones.

Specification

Power

26W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

3800LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

ROLEDS

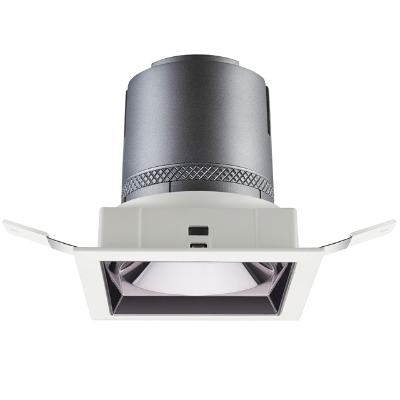

RECESSED DOWNLIGHT

INDOOR LIGHTING

LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

double emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 64 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2414 lm, with a 150.9 lm/W nominal luminous efficacy. The device body is made of iron and features a embossed white ral 9003 finish, processed by means of coating; the diffuser is made of pmma; the mounting frame is made of iron, with a zinc finish, processed by means of washing. The ingress protection degree is IP20; the total weight is of 1.4 kg. The total absorbed power is 20 W. The device features protection class II and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions
