SPARK

SURFACE TRACKLIGHT

INDOOR LIGHTING

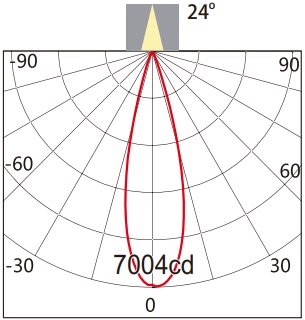

SPK9101-20W-24°

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different type of bean angles.

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1656LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

PROLICHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.67 grams · 2 powder-coated color options · RAL colors on request · Dimmability depends on the ballast · Direct light colors: optionally 2700K, 3000K, 3500K or 4000K. · CRI > 90 · MacAdam: 3 · IP protection type IP65 · Height: 122 mm · Diameter: 108 mm

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.

MEYER

WINDOW LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, 2 drilled holes Ø 6 mm, spacing 259 mm, 4 x M6 grub screws to offset inclined surfaces, cable gland: 2 x M20, connecting terminal: 3 pole, high‑end optical system with specially designed reflectors achieve a uniform arch of light, integral driver (AC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 12° / 180°, luminous flux: 930 lm, wattage: 13 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, dimensions (L×H×W): 270 × 70 × 125 mm, weight 1.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 620 lm, with a 137.8 lm/W nominal luminous efficacy.The device body is made of aisi 316 stainless steel and features a steel finish; the diffuser is made with a silk-screening treatment.The total absorbed power is 4.5 W The power supply cable is included and features a 30 m.
