SPARK

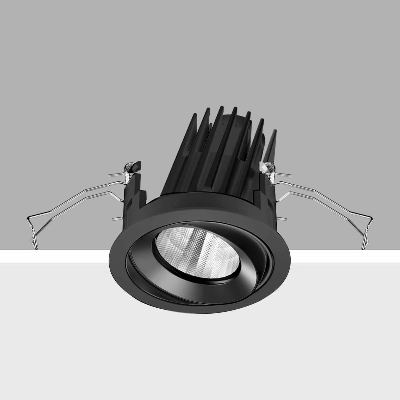

Colosseo Round series fully adjustable luminaire designed to accommodate any recessed lighting applications. Round-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Colosseo is available in three sizes with light head diameters of 75mm, 90mm and 120mm, vertical tiltable ±30°. Luminaire body inclusive of snoot-in cast aluminum, Easy relamping via removable front ring by snap-in catch actio.

Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

The Cluster Inground Uplight is a high-performing luminaire series with three output options, including a mini size, designed for landscape applications. The deep-set LEDs and honeycomb lens dramatically reduce glare and produce a sharper beam that will accentuate the space. The ingress protection degree is IP67.

Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 620 lm, with a 137.8 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4.5 W. The power supply cable is included and features a 2 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 83140 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
