SPARK

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

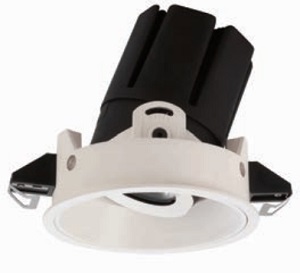

Recessed luminaire with adjustable optic for warm white LED with high colour rendering index. Passive cooling system. Adjustable body can be rotated within the recess to ensure precise but comfortable lighting and considerably reduced direct glare. 355° internal rotation and max 30° oscillation with continuous friction. Fixed recess structure in die-cast aluminium with perimeter stop frame. The recessed luminaire includes a radiant aluminium element, a steel junction for the optical assembly and

The Allegro Linear AC SW family is a slim-profile, AC-line powered high-brightness luminaire. The family is controllable via DMX512, and is available in 1ft and 4ft lengths. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation. DIMENSION : 1215 × 50 × 86mm

ThisisthesmallestroundversioninLasVegasseries,with75mmcut-out size.TheUGR<6andshieldingangle<40°. Itissuitableforlessthan5metersceilingheight.
