Product Detail
Home Products Detail

Products

NEKO

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
TA8 + LED Module M4-9302013A-TA8-BBB

TA8 + LED Module

M4-9302013A-TA8-BBB

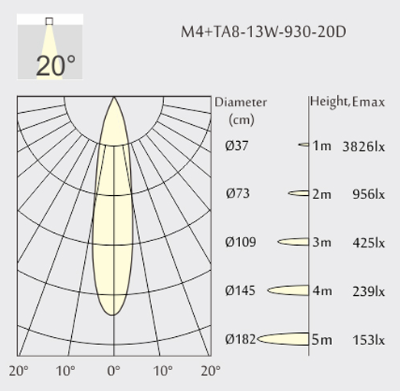

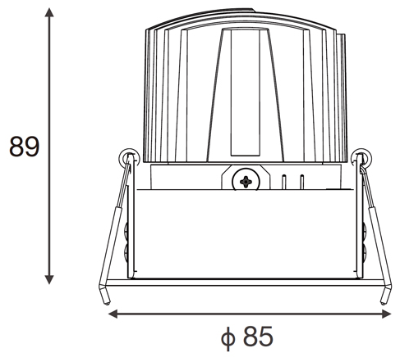

Round spotlight for recessed installation made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; LED 13W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 280g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1400lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
850LM
Finishing
BLACK
IP Rating
IP54
Color Rendering
CRI 90
Driver
0-10V DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 75 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
XAL
SURFACE SPOTLIGHT
INDOOR LIGHTING

Cylindrical spotlight in aluminium; surface traffic white powder coated; 350° rotatable and 90° tiltable; with surface mounted housing; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed LED-COB downlight, die cast aluminium housing body. Various choices on CCT, beam angle and inner reflector.

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
