93995M07

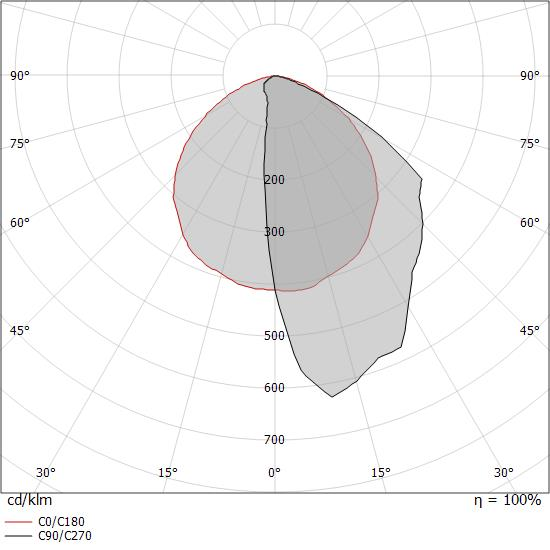

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 210 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1208 lm, with a 92.2 lm/W nominal luminous efficacy. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.95 kg. The total absorbed power is 15 W. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98844(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
568LM
Finishing
TRANSPARENT
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

XAL
WALLWASHER
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; 1 lamp; surface traffic white; 360° rotatable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; no multiple shadows.

LUMASCAPE
UNDERWATER LIGHT
OUTDOOR LIGHTING


MEYER
FLOODLIGHT
OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

HELVAR
CONTROL SYSTEM
CONTROL SYSTEM

A four circuit Trailing Edge mains Dimmer Module for the control of resistive lighting loads including compatible LED loads. A custom designed housing provides reliable power handling in a compact format. Modules may be used in a standalone mode with simplified functionality providing programmable. Scene Setting or Impulse (ON/OFF/DIM) type control from a single keypad. Alternatively conventional momentary switches can be linked to a Contact Input Module (DIN-INT-00-08-PLUS).
