LINEALIGHT

WINDOW LIGHT

OUTDOOR LIGHTING

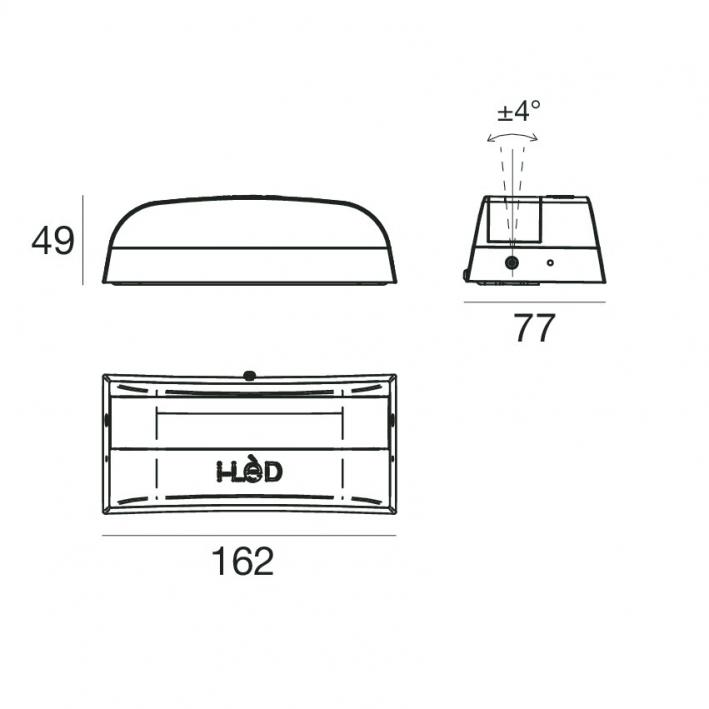

95616M1

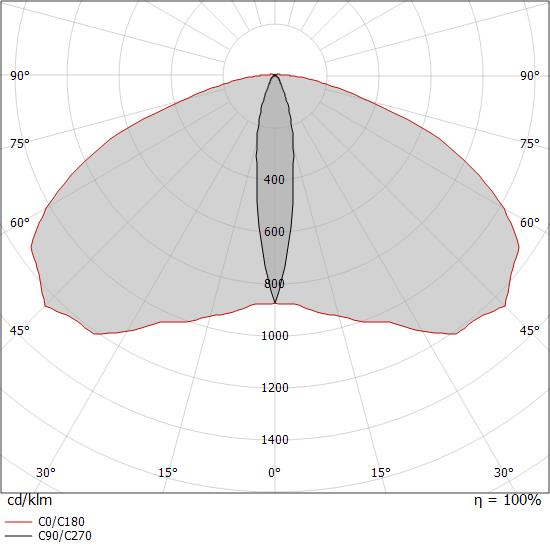

Arced diffusion uplights for outdoor application. The super warm white LED light source with a elliptic narrow spot (wall grazing) light distribution is composed of 4 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 876 lm, with a 109.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate with

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

636LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight made of die-cast aluminium and epoxy white finishing. 360° rotatable and 30° tilt able angle. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. The ingress protection degree is IP40.

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application. The warm white LED light source with a wide flood light distribution is composed of 24 powerled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 5.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2714 lm, with a 123.4 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67, IK10.
