92112M27
Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1692 lm, with a 128.2 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The total absorbed power is 14.5 W. The power supply cable is included and features a 0.2 m length.

Specification

Power
14.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1104LM
Finishing
ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

FLOS
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary. IP20.
HELVAR
CONTROL SYSTEM
CONTROL SYSTEM

The RS232 Interface is compatible with Evolution control systems which both use the standard mode lighting M-BUS network. The small form factor and multi-device connectivity makes the MBUS-INT-232 a flexible addition to any system. The RS232 Interface extends the integration capabilities of the Mode Lighting control system by adding extra RS232 connections. The interface is bi-directional allowing the systems to send commands to external devices and receive commands from integration control sys

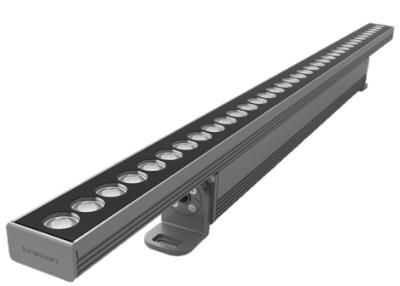

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.
