MEYER

INGROUND UPLIGHT

OUTDOOR LIGHTING

UPLIGHT260_8 665 016 049

The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. The luminaires combine all crucial product advantages precise light distributions, perfect glare control, adjustable reflectors and shallow recess depth. Uplight 220 and 260 are equipped with the innovative Heat Slide mechanism which allows the optical system to be adjusted and aimed whilst the LED module remains connected to the luminaire housing. Thus efficient heat dissipation and a long lifetime of the LED is achieved. The luminaires are now available with innovative wall washeroptics for uniform illuminaition from thebottom to the top of the facade.

Specification

Power

40W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3604LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

MEYER

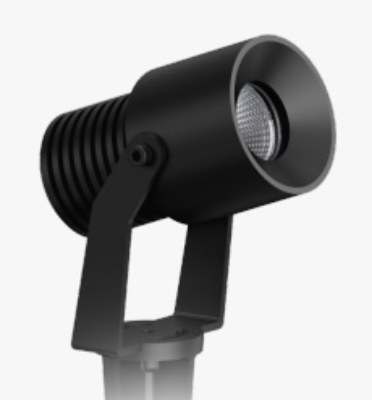

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

CUSTOMIZED

GLOBE LIGHT

OUTDOOR LIGHTING

Durable and Waterproof: The light body of the globe glowing light is made of premium PE (Polyethylene) material, which is very ductile, lightweight, impact resistant and durable. The globe glowing light is made of sturdy polyethylene and thickened sealing ring, which ensures the waterproof rating reaches IP65, resistant of rain, snow and other harsh weather.

FLOS

BOLLARD

OUTDOOR LIGHTING

100-240V power supply included. Ready for installation on solid surface. Each luminaire is equipped with 200 mm cable for connection inside the luminaire body. Reccomended connection wit a 2 way terminal block 4 poles IP68 H2O Stop, to be ordered separately.

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Entirely made of stainless steel 316Ti 1.4571. Mounting foot adjustable through 180° or 90°. QT32, HIT-CRI, HIT-DE, HST-DE with aluminium reflector. Cable gland PG16/21, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Ballast and ignitor fitted depending on the version.
