XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
SASSO 40_048-2800414M 048-2898318 002-90752

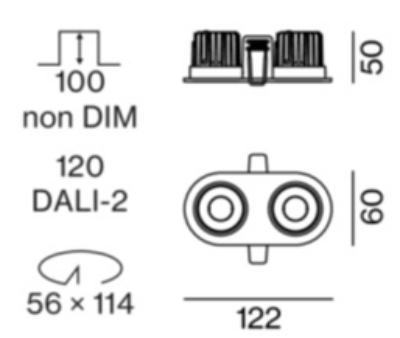

Round recessed spotlight luminaire is made of die-cast aluminium housing. 2 lamps; surface matt silver. Installation without tools in mounting set due to patented ball catch system, oval installation housing. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry. With COB (Chip on Board) technology for maximum efficiency, no appearance of multiple shadows. DIMENSION: (L)122x(W)60x(H)50mm.

Specification

Power
12W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
742LM
Finishing
BLACK TRIM / SILVER REFLECTOR
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1611 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.544 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 18 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 113 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.250 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 x 64 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Surface mounted light with body in cast aluminium, toughened thermal shock clear glass diffusers, weatherproof durable silicone gasket and external screws made of stainless steel. Simple to install via cable entry with grommet. Can be connected directly to the main power.
CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.
