Product Detail | Bloxlimited

XAL

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

TASK S DIRECT / INDIRECT TW_059-52D4038K

Rectangular luminaire is made of rounded edges in aluminium housing. Extremely flat (only 15mm) and slim (only 180mm) design. Modern shape in an elegant design for high demands. Surface black powder coated. Suspended luminaire with 1500mm cable suspension. With integrated tool-less suspension height adjustment; incl. transparent feed. Direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving. Light control via highly reflective reflector material. Indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination, separately controllable.

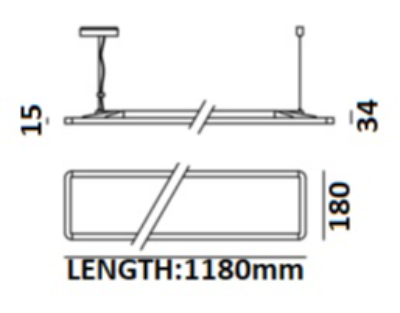

DIMENSION: (L)1180x(W)180X(H)34mm

Specification

Power

22.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2670LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed downlight (frameless) LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. Luminaire body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic. Die-cast aluminium structure designed for flush with ceiling installation - a specific adapter with a separate code is available for false ceilings. This is indispensable for installing recessed luminaires. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass included LED lamp with high color rendering index.

ILIGHT

CONTROL SYSTEM

This 4 channel feed through relay unit provides outstanding features and performance in a truly competitive and compact package. Each channel is rated for up to 32 amps and is designed to sit on load lines to switch heavy loads of all types. With iLight network connectivity, it has the capability of being linked with a virtually limitless number of other products to build up to any size of system. This product is designed for projects where high power switching is required including metal halide and high pressure sodium lamps as well as non-lighting loads of any voltage up to 230VAC
