TRAXON

CONTROL SYSTEM

INDOOR LIGHTING

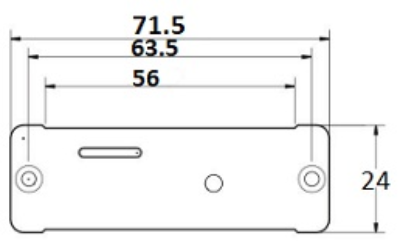

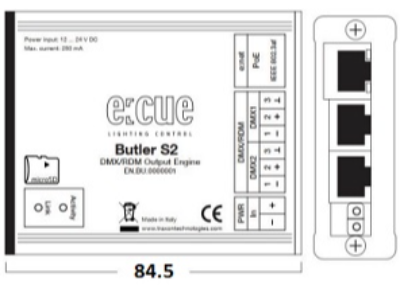

BUTLER S2_AB436200031

The e:cue Butler S2 is a DMX engine that can be used either in standalone mode to replay and loop previously uploaded lighting shows, or as a DMX output device controlled by another e:cue server with an e:net connection. It is programmed using a PC or the e:cue Lighting Control Engine running the e:cue software suite. One compact Butler controls up to 1024 DMX channels in two DMX universes. Up to 99 cuelists for shows in standalone mode are stored on an micro SD card. The DMX channel control can be increased to 16,384 channels by clustering more Butler S2s. The Butler is powered by an external power supply with 12 to 24 V DC or via 48 V DC PoE (Power over Ethernet). A 7- segment LED is used for message and status display.

Specification

Power

2.7W

Color Temperature

Light Source Type

Lumen Output

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

Driver

ON/OFF DRIVER

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

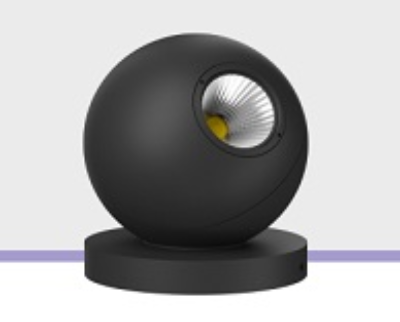

Single emission projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.
