Products

XAL

TRACKLIGHT
INDOOR LIGHTING

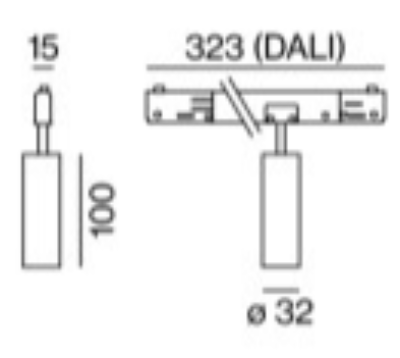

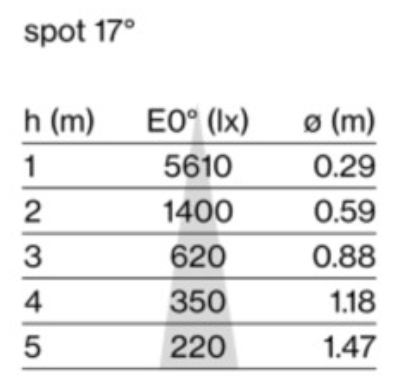

BO 32 intrack 180-7111438S


Specification

Power
11.6W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
678LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI90
Driver
DALI DRIVER

See more

LIGMAN
INGROUND UPLIGHT
OUTDOOR LIGHTING

Die-cast aluminium housing. Pre-treated before powder coating ensuring high corrosion resistance. 5.5 mm thick front ring in grade 316 stainless steel. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket. High-efficiency PMMA lens. Clear or frosted toughened glass. Integral control gear. Recessing box in high-density polyethylene is included. Suitable for drive-over with a maximum load of 2000 kg. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h. Load is transferred by the housing to the foundation. The distance between the floodlight and the illuminated surface should be at least 0.5 m

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source with a double extra wide flood light distribution is composed of 2 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with six flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
SPARK
RECESSED MAGNETIC TRACK LINEAR
INDOOR LIGHTING
Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.
