Product Detail
Home Products Detail

Products

SPARK

LINEAR DOWNLIGHT
INDOOR LIGHTING
SPK1603


Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED

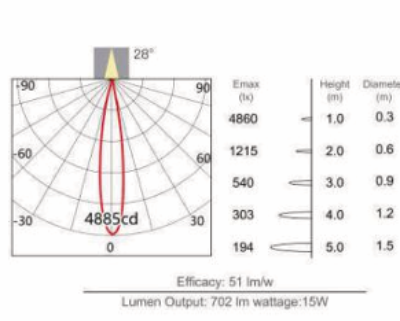

Lumen Output
702
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI90
Driver
ZIGBEE DIM

See more

LINEALIGHT
CEILING LIGHT
OUTDOOR LIGHTING
Single emission ceiling lights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 2.8 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed downlight made of die cast aluminium housing.

PHOS
RECESSED DOWNLIGHT
INDOOR LIGHTING

The Nano Eclipse Trimless is a recessed downlight with a trimless plaster in frame and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture, 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
