SPARK

wall recessed luminaire for walkways designed to use high visual comfort LED lamps. It consists of an optical assembly with an IP66 protection rating and an outer casing or wall-mounted base. The optical assembly and base are made of aluminium alloy treated with powder paint, which provides a high level of resistance to weather and UV rays. Plastic closure guard at the rear of the optical assembly.  All external screws used are made of A2 stainless steel.

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

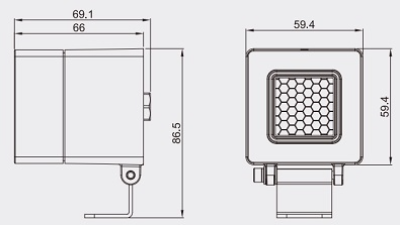

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.67 grams · 2 powder-coated color options · RAL colors on request · Dimmability depends on the ballast · Direct light colors: optionally 2700K, 3000K, 3500K or 4000K. · CRI > 90 · MacAdam: 3 · IP protection type IP65 · Height: 122 mm · Diameter: 108 mm

Recessed rectangular multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; suitable for ceiling thickness of 2-25 mm; equipped with four flood square light elements; symmetrical light distribution with precise radiation characteristic. High quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19. Protection IP20.
