Laser Evo Recessed luminaire designed for easy and precise installation in a Ø59 mm mounting hole. Front element with conical profile baffle "Cone". Fixed IP65 version, ideal for humid environments. Version with reflector, wide flood optics and front baffle in black.

Round-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Luminaire body inclusive of snoot in cast aluminum. Easy relamping via removable front ring by snap-in catch action. Available in three sizes with light head diameters of 75mm, 90mm and 120mm. Tiltable in two directions up to 30°.

EP55: Spotlight with bracket - Warm White LED - On/Off - Very Wide Flood optic

Life Time: 100,000h - L90 - B10 (Ta 25°C)/Life Time: 100,000h - L90 - B10 (Ta 40°C)/Intervallo temperatura ambiente: from -25°C to 50°C./Number of optical assemblies: 1/Optical assembly Characteristics Type 1:/Light Output Ratio (L.O.R.) [%]: 76/Number of lamps for optical assembly: 1/Lamp code: LED

Floodlight designed to use Warm White LED lamps with a Very Wide Flood optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

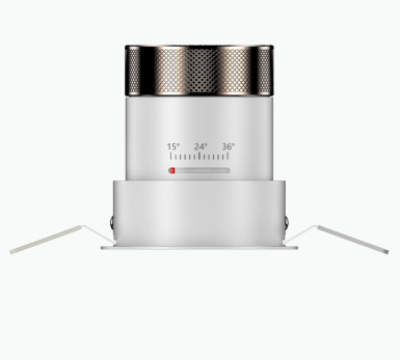

Recessed adjustable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.
