NEKO

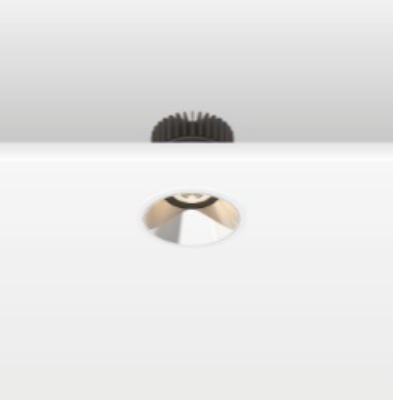

A series of pinhole downlights with reflector available in various sizes and finishing, designed with a deep aperture for optimum glare control. The Castor downlight is equipped with an off-set tilt mechanism that maximises light output for most demanding applications.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 549 lm, wattage: 7 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.36 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 113 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
