IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

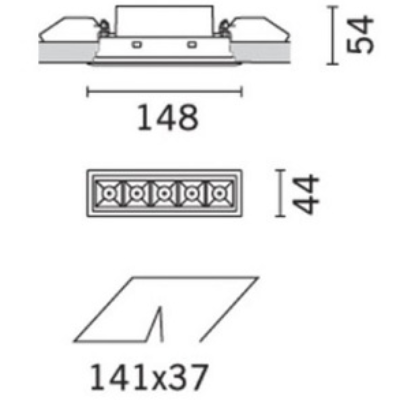

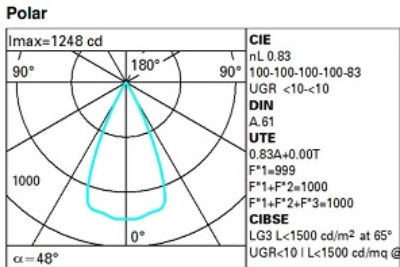

LASER BLADE_MM78.01

Recessed rectangular miniaturised luminaire with 5 fixed optical elements with LED lamps. Luminaire body made with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen; the structure of the optical system prevents a pinpoint effect, allowing precise, circular light distribution and emission with controlled glare.

Specification

Power

13W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

705LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 95

Driver

DALI DRIVER

ERCO

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Skim surface-mounted luminaire for situations where ceiling architecture does not allow the installation of recessed downlights. The same lens system is used here as for Skim recessed luminaires. With efficiency and visual comfort, diverse light distributions and available in two sizes, the luminaire is suitable for a variety of applications like offices, shops and public buildings. Surface-mounted luminaires are the straightforward lighting solution especially in new energy-efficient buildings with solid concrete ceilings. Details such as securing the luminaire with snap hooks or optional spacers for surface-mounting make mounting easier.

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The natural white LED light source is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 11 kg. The total absorbed power is 89 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99772 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.250 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 x 64 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
