XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings;
suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four medium square light elements;
symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with
micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire

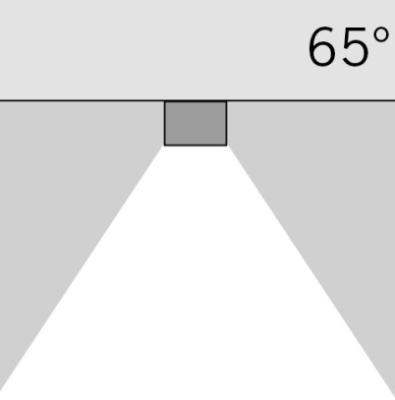

according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through
improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of
luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering;
degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole,
available as an accessory; accessories are listed separately; light source not replaceable; control gear
replaceable by an authorized professional; clank-free;
