WE-EF

Round recessed wall washer luminaire with contact frame, the optic system is designed to aim the light flow on a vertical surface with no shadow zones and a precise outline. The main die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Structure featuring a die-cast aluminium external contact frame with a white finish only. The optical assembly includes two shaped metallised thermoplastic reflectors, a PMMA refractor/protective screen and a plastic anti-glare case available in different painted or metallised finishes. Quick, easy, tool-free assembly

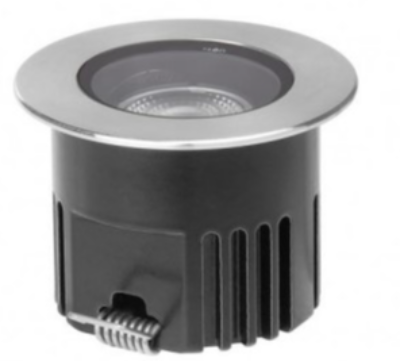

Single emission uplights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 490 lm, with a 98.0 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.2 kg.

The total absorbed power is 5 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 99650(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

RIMiT zen is a 12mm diameter cylindrical lighting fixture that provides 360° uniform illumination. It is available in 40 lengths, ranging from 34mm to 1009mm for one end lead wire type, and in 8 lengths from 159mm to 509mm for midpoint lead wire type for wall mounting.
