Product Detail | Bloxlimited

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

CRYSTAL_RD89.83

Recessed luminaire for vertical lighting consisting of a lamp device, 6-cell emission raster and operating components. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.

Specification

Power

20.8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2503LM

Finishing

BLACK TRANSPARENT

IP Rating

IP20

Color Rendering

CRI80

Driver

DALI DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium and features a embossed black ral 9005 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.57 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 120 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Super Spot optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. The ingress protection degree is IP66.

COLORS

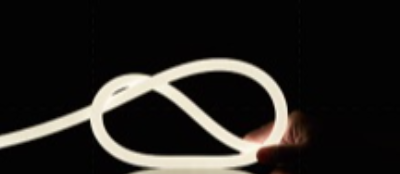

LED NEON TUBE

OUTDOOR LIGHTING

The luminaire high light transmittance, high purity silica gel material, the ingress protection degree is IP65, IK08. Unique optical light distribution structure design, 360° light output uniformly without shadows. Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape. Product application for office lighting, decorative lighting, artistic lighting, modeling contrast.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
