QUBO MAXI COB_101604_42W-14°
Floodlight for outdoor installation on a façade/wall, with U shape fixing bracket allowing vertical adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Built-in LED driver, with 1 COB CREE “CXB 2540” LED. IP66 rating.

Specification

Power
42W
Color Temperature
3000K
Light Source Type
COB
Lumen Output
4950LM
Finishing
GREY
IP Rating
IP66
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

BEGA
FOOT LIGHT
OUTDOOR LIGHTING


SIMES
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING
Minilinear: "Copper Free" Aluminium extruded EN AW-6060 with high resistance against corrosion, caps in "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Miniround: "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets (Minilinear). Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
SPARK
FLOOR LAMP
OUTDOOR LIGHTING

Outdoor Floor light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for garden, balconies terraces, pool deck and walkway application.

PROLICHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

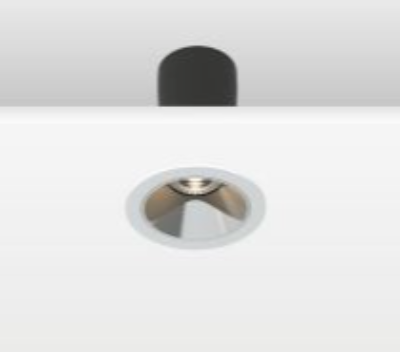

The rimless spot OIKO from the familiy OIKO consists of aluminum-die-cast. With 2 powder coated options 625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 120-0195) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.
