LINEALIGHT

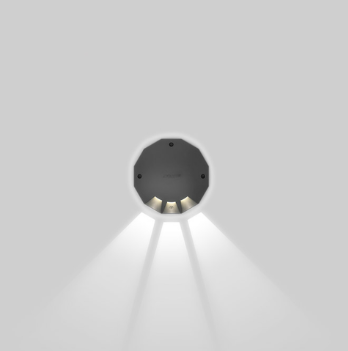

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

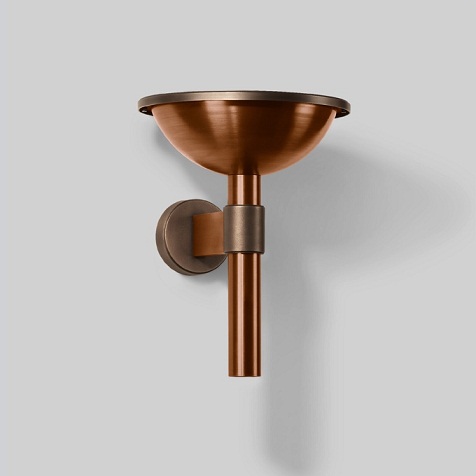

Luminaire made of copper and bronze alloy. Matt safety glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection, LED power supply unit 220-240 V x 0/50-60 Hz. DC 198-280 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK10. Protection against mechanical impacts < 20 joule, r – Safety mark, c – Conformity mark.

The Nano Eclipse Mini Trim is a recessed, tilt behind, adjustable downlight with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 22° Tilt, 360° Rotation.

This luminaire supports monochromatic, RGBW, Tunable White, and Tunable Warm LEDs for ceiling, wall, or surface installation. Made of extruded aluminium with die-cast zamak end caps and UV-resistant liquid acrylic paint, it features a sealed 5mm glass screen. Available optics include Wall Grazing, Microlouvre, Accent, Flood, and No-Dot. Offered in 2200K to 4000K, with RGBW and tunable versions. Rated IP66 and IK06, with A2 stainless steel screws. Power supply and driver not included.
