FORMALIGHTING

WALLWASHER

INDOOR LIGHTING

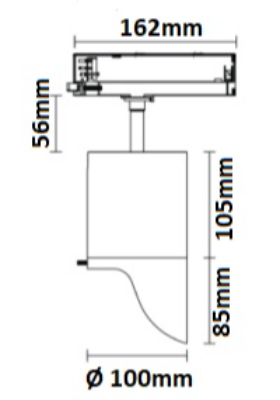

ZERO COMPASSO 100 WW_6618BC33-9030WWD010

EVO track mounted Zero Compasso wallwasher, available in three sizes (Ø42, Ø66 and Ø100mm) versatile aiming angle tiltable vertically 0°-90° and rotatable horizontally 360°. Perfect for museums and galleries applications. Wallwashing with high uniformity can be used to illuminate artwork and sculptures. Vertical uniformity creates a wide and distinguished spatial impression by brightening the entire height of the wall.

Specification

Power

16W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1100LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

OUTDOOR LIGHTING

Single emission ceiling lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 2.8 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LEYARD

LED CURTAIN SCREEN

OUTDOOR LIGHTING

Zebra Series: Application environment : Outdoor ·Working life : ≥100,000 hours ·Cabinet material : Aluminum alloy ·Brightness : 1000 ~ 5000cd / ㎡ ·Installation method : Hoisting / Fixing ·Certification : CE / CCC / FCC

Can be customized size and shaped.

Pixel Pitch (H/V): 20mm, Pixel Configuration （SIDE):1 x SMD2727, Brightness（CD/m²):1000 ~ 7000, Pixel Density（dot/m²):2500, Transparency: 60%, Cabinet Resolution（dot): 50x50, Module Size（mm): 1000 x 28, Module Resolution: 50 x 2 dot, Cabinet Weight: ≤16Kg / m², Ingress Protection (Front/Back): IP65, Viewing Angle (H/V), 120°/ 120°, Viewing Distance:>20m, Gray Scale: 16 bits, Avg.Power Consumption（W/m²): 600, Refresh Rate（Hz): 3840, Input Voltage: AC100 ~ 240V , 50 / 60 Hz, Drive Mode: Static, Control Mode: Synchronous display with control PC by DVI, Support Input: Composite , S-Vido , Component , VGA , DVI , HDMI , HD_SDI, Operating Temperature: -40°C ~ 50°C（work), - 40°C ~ 60°C（store), Operating Humidity: 35% ~ 85%（work), 10% ~ 90% （store）

FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

The TicTok series is an energy-saving micro track system with an integrated driver, which focuses on modularity and ecofriendliness. The tool-free interchangeable LED module facilitates design flexibility and ease of on-site maintenance. Designed to be the perfect solution for accent lighting in sustainable lighting design schemes for retail, hospitality, and high-end residential. TicTok curved is designed to be fitted on the curved Micro Track with R300 or R500; to ensure that the design environment is fully covered.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
