ZERO FRAMING PROJECTOR 85 SURFACE_1463BC32-9730BWD010

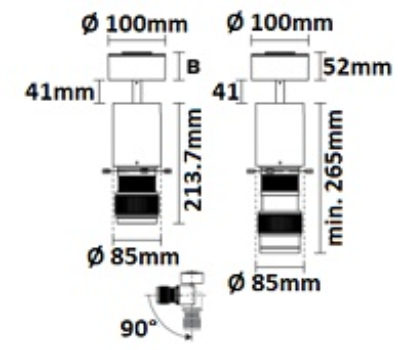

Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

Specification

Power
27W
Color Temperature
3000K
Light Source Type
LED

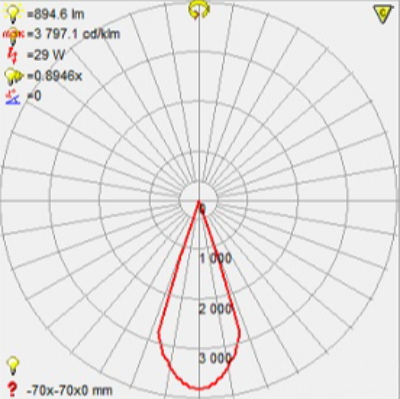

Lumen Output
2098LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 97
Driver
ON/OFF DRIVER

See more
