FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING
ZERO DUE 40_1421BC31-903036D010

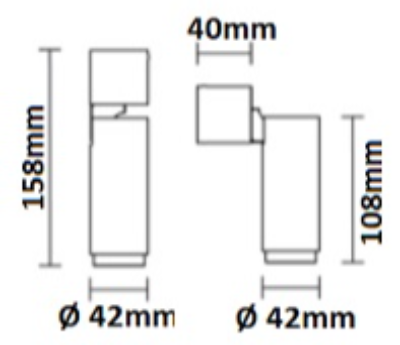

Ceiling and wall mounted spotlight with light body and driver canopy in cast aluminium. Inclusive of reflector in metalized PC. Light body is designed for passive cooling. Available in 3 different sizes. Tiltable vertically 0-90° and rotatable horizontally 360°.

Specification

Power
6.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output

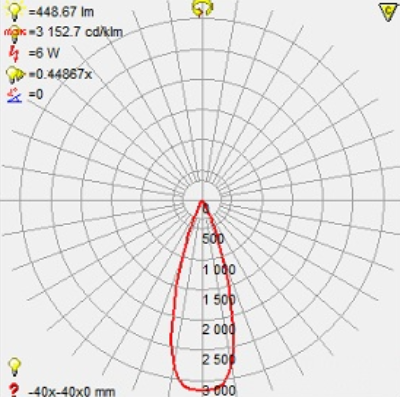

449LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Inground luminaire made of die-cast aluminium alloy with very low copper content. A4 Stainless steel screws. The product is painted follow a continuous two step paint process (epoxy-based primer + polyester-based color finish), which allows to generate a single thick protective coating which then generates protective barrier against atmospheric agents and UV rays. IP68 protection with Full Dry system which avoids condensation inside the product. IK10

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

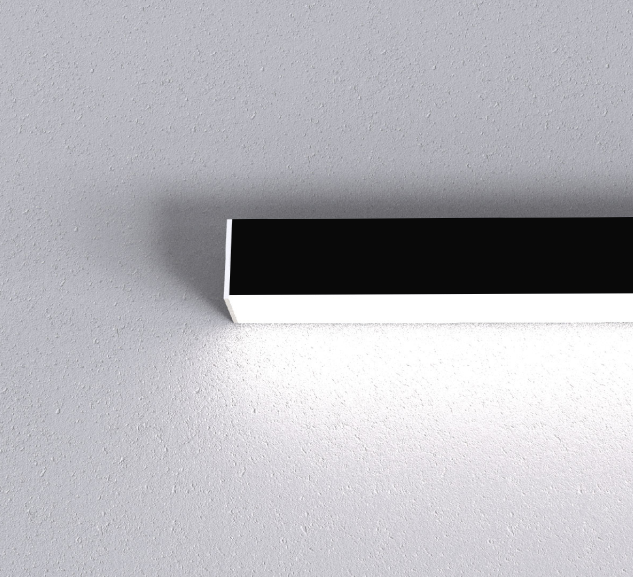

Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Single emission wall lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.44 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
HELVAR
CONTROL SYSTEM
CONTROL SYSTEM

The Power Supply Module is an ultra compact DIN railmounted unit with connections for a single M-BUSnetwork via screw terminals and a patch lead socket.The Power Supply Module provides up to 800mA,24V DC. Additional Power Supply Modules can beadded if required.
