LIRA 2.0_LR20105AH

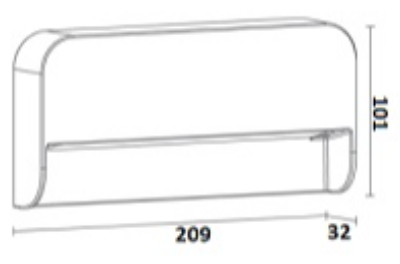

Step light for outdoor applications; surface mounted (wall); Power consumption: 12W; Power supply: 230Vac; Lumen output at source: 1512 lm (3000K); Delivered lumen output: 736 lm (3000K, white finish); 36 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical; Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: anthracite; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Dimensions: 209x101x32 mm.

Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
736LM
Finishing
ANTHRACITE
IP Rating
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Tin Can downlights are available in three sizes with multiple outputs, CCT, CRI and beam spread options. Hang Tin Can luminaires from ceilings as stem-mounted pendants or attach directly as surface-mount fixtures.
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
