PROLICHT

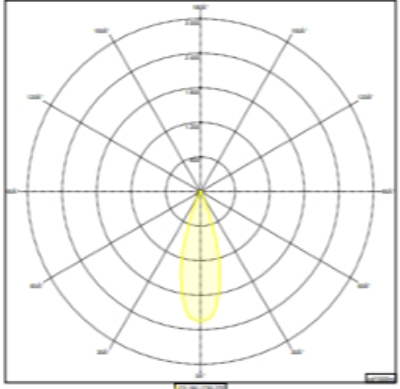

Round recessed adjustable spotlight; 360° rotatable and 30° tiltable;(UGR ≤ 13); light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 25° beam; Rg: 98 | Rf: 91 | R{1-15}: 89,MR 0.6 | MDER 0.55, degree of protection from below IP40 (from above IP20); PC2; 220-240 V; incl. converter, non dimmable. (Product code 048-2820517M 048-2896317 002-90752)

Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. AISI 301 Stainless-steel end caps for the extruded parts. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Ø75 The fixture head is fixed. Ø90 The fixture head is 30 degree adjustable and 360 degree rotatable.The adjustable downlight luminaire body made of alluminium and reflector is plastic. Powder coated anti-glare ring is black on all variants. Ingress protection IP20. DIMENSION: Width x Height x Length (mm) | 75 x 78 x 75 Max 0.4 kg | 90 x 83 x 90 Max 1.9 kg.

Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
