ZERO FRAMING PROJECTOR 85 SURFACE_1463BC32-9730BWD010

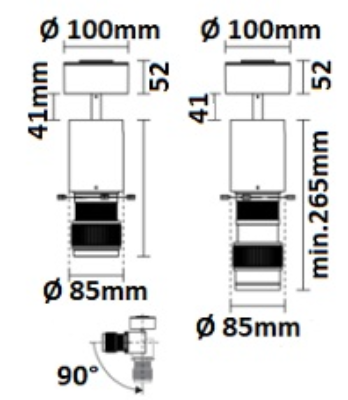

Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

Specification

Power
27W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2098LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 97
Driver
ON/OFF DRIVER

See more

ELR
SURFACE TRACKLIGHT
INDOOR LIGHTING

A series of track mounted adjustable luminaires with double pivot arms for added versatility to freely position the luminaire direction in applications where the track is hidden in ceiling troughs. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with choices to flexibly illuminate objects ideally for showcasing and retail applications. IP40.

FORMALIGHTING
TRACKLIGHT
INDOOR LIGHTING

Motorized track mounted spotlight with light head and mounting arm in cast aluminium. Moto-Zero Compasso Zoom is available in 3 diameters: 40mm. 68mm and 80mm. The integrated track adapter with built-in driver is compatible with 3 phase eurotype track. Two DC motors drive the movements of the fixtures, tilting them vertically up to 90° and rotating horizontally 350° a third motor controls a special lens, which allows the user to shape the light beam from narrow to wide diffuse.

LINEALIGHT
WALLWASHER
INDOOR LIGHTING
Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 180 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.050 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of ot58 brass and features a embossed white ral 9003 finish, processed by means of powder coating. The ingress protection degree is IP52; the total weight is of 0.116 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
