NEMO

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.

Physical length 2375 mm | width 60 mm | height 60 mm

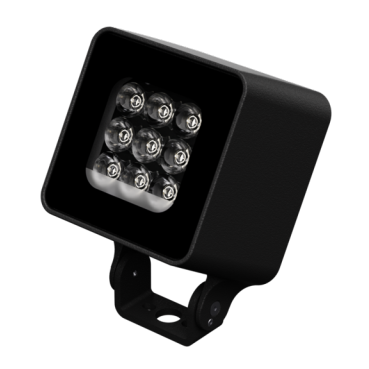

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 5°, luminous flux: 2855 lm, wattage: 46 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,027 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Controllable recessed adj downlight come in zoomable beam narrow 10° - 36° OR 15° - 60° beam. Color temperate available 2700K, 3000K, 3500K, 4000K, Tunable 2700K-6000K control via 0-10V, DALI or DMX512 system. 5% - 100% brightness change. Pan 0-355°, Tilt 35°. CRI 90, IP20

DIMENSION : Ø215*H186MM
