Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
C00178WHMWF

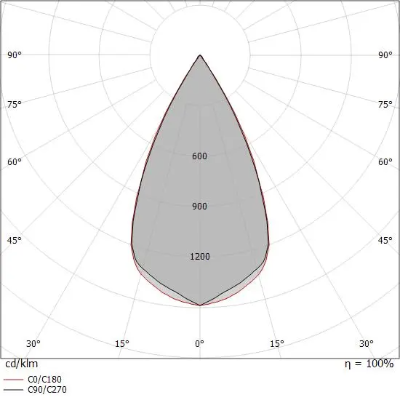

Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1487 lm, with a 135.2 lm/W nominal luminous efficacy.
The device body is made of uv resistant polycarbonate and features a white finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 11 W. The power supply cable is included and features a 0.15 m length.

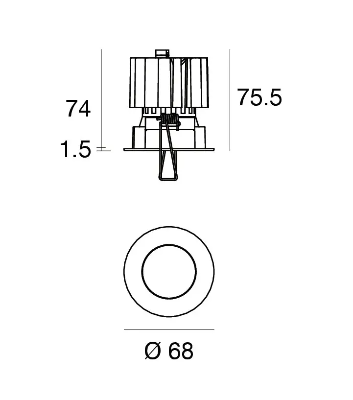

The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Specification
- Power
- 11W
- Color Temperature
- 2700K
- Light Source Type
- LED
- Lumen Output
- 866LM
- Finishing
- WHITE
- IP Rating
- IP44
- Color Rendering
- CRI 90
- Driver
- ON/OFF DRIVER
