FLOS

RECESSED SPOTLIGHT
INDOOR LIGHTING
UT_SPOT_09.4465.30ADA

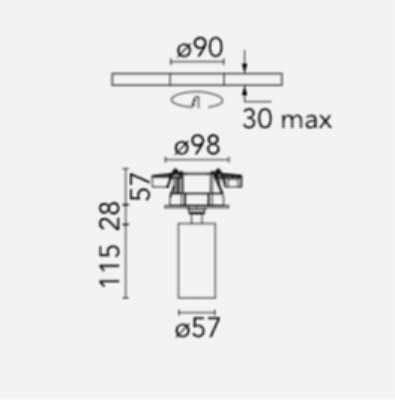

Spotlight to be installed on ceiling with LED light source. 220-240V, 50-60Hz remote power supply included.

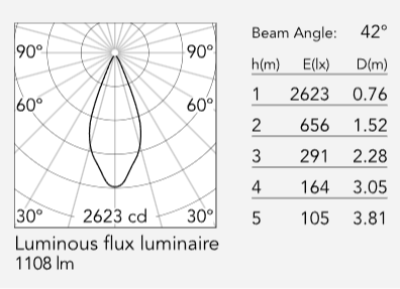

Specification

Power
23W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1108LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI80
Driver
0-10V DRIVER

See more

FLOS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
LED modular system for recessed Trim installation, including LED luminaires, aluminum installation profile and diffusers. Drivers included in lighting modules for 220-240V connection to mains or to other lighting modules.
BEGA
WALL LIGHT
OUTDOOR LIGHTING

Luminaire made of copper and stainless steel. Opal glass with screw neck. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark c – Conformity mark.

SIMES
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING
"Copper Free" Aluminium extruded EN AW-6060 with high resistance against corrosion, caps in "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. 3 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
