LIGMAN

UNDERWATER LIGHT
OUTDOOR LIGHTING

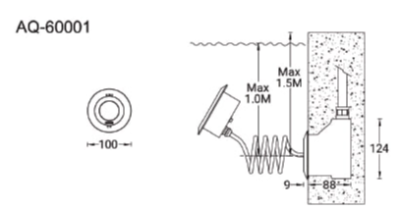

AQ-60001-M-8040-ND-00


Specification

Power
14W
Color Temperature
4000K
Light Source Type
LED
Lumen Output
1057LM
Finishing
Stainless Steel
IP Rating
IP68
Color Rendering
CRI80
Driver

See more

LIGMAN
WALL LIGHT
INDOOR LIGHTING

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry, stainless steel fasteners in grade 316. PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options. Passive thermal management, integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

LINEALIGHT

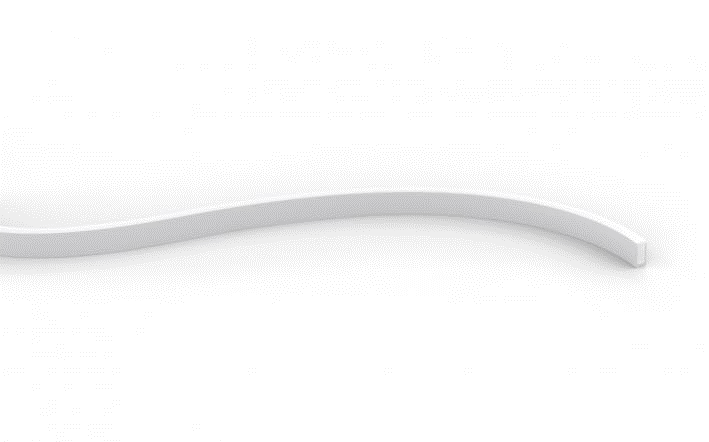

LED STRIP
OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 1400 topled LEDs. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 3.850 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1(M)x0.25 m + 1(F)x0.25 m length. The device features pr

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a elliptic spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99855 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT

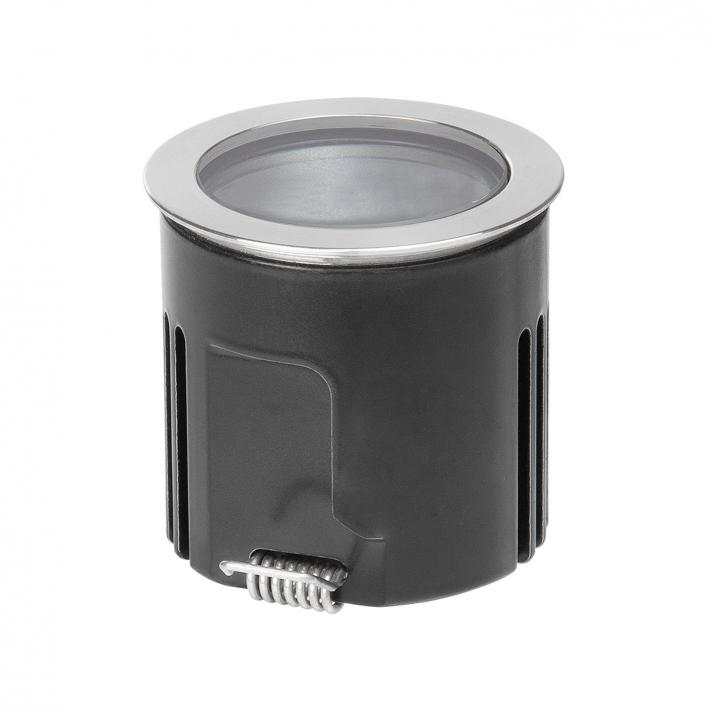

INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; thediffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68, IK10.
