Product Detail | Bloxlimited

XAL

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

MINO 40_042-1222037H

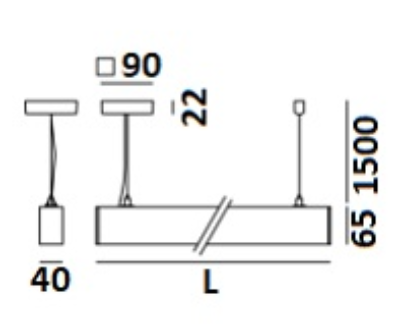

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface pure white powder coated; suspended luminaire with 1500mm cable suspension; height adjustment without tools; incl. feed (white); luminaire profile can be pre-mounted; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination; degree of protection IP20. DIMENSIONS : L (1008)xW(40)xH(65)mm

Specification

Power

18.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2100LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

UNILAMP

FLOODLIGHT

OUTDOOR LIGHTING

ATHLON family is functional mini spotlight/ floodlight. The slim and clean design of Athlon allows a hidden installation. Athlon is designed for a streamlined time effective installation. Alanod Miro reflectors used in this luminaire are designed by Photopia high-end lighting engineering software. Tigh beam control utilizes selected lenses from world-renowned manufacturers. ATHLON is available with symmetric, asymmetric and bisymmetric light distributions and the broad range of accessories such as a ground, spike, tree strap, color filters, honey comb louver and glare shield hook makes it a dynamic floodlight choice. The graduated scale provides accuracy of the light distribution on the illuminated surface. ATHLON is suitable to light up small to medium sized objects or areas such as signage boards, ceiling, building facades, etc.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

IGUZZINI

SURFACE TRACKLIGHT

INDOOR LIGHTING

Adjustable projector Ø86 with adapter for installation on base or mains voltage track. Luminaire body made of die-cast aluminium with rear cap and front ring in thermoplastic material (Mass-Balance). The product allows a rotation of 360° around the vertical axis with mechanical locking and an inclination of 90° with respect to the horizontal plane. Passive heat dissipation. OptiBeam Lens optical system with Flood optics

SPARK

LINEAR GRAZER

OUTDOOR LIGHTING

RWW24 is a wallwasher luminaire series of extremely compact dimesnsions with integral 24vdca driver. As well as individual luminaires there is also a modular system availabe for creating contionous lines with barely any shadow between the section. The very slim cros section allows between the section. The luminaires are areavaible with wall washer optic or in asymmetrical distribution.
