LINEALIGHT

INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

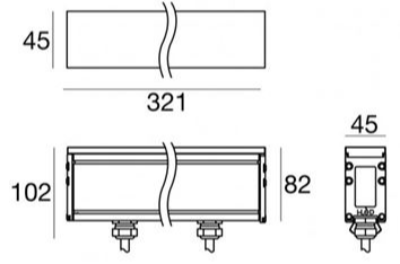

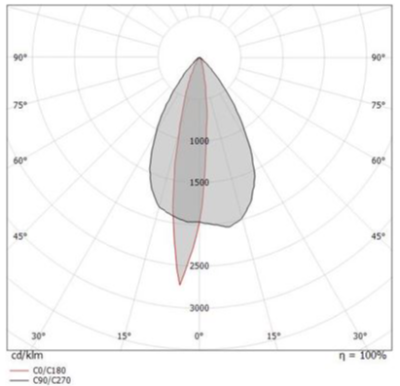

ARCHILINE F_92127W27

Trimless Inground luminaire come with a asymmetric wall wash light distribution and composed of 6 power LEDs. Luminaire body is made of aluminium 6060 and features a anodised black finish, the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67;

Specification

Power
14.5W/300MM
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1174LM/300MM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Single emission systems or lines for indoor application. The warm white LED light source with a no optic light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2078 lm, with a 159.8 lm/W nominal luminous efficacy. The device body is made of aluminium alloy 6060 and features a text black ral9005 finish, processed by means of powder coating with thermosetting powders.

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LUMASCAPE
WALL LIGHT
OUTDOOR LIGHTING

The LS731LED Portico is a compact, fixed position, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ surface treatment, to provide a long life even in coastal environments. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

LUMASCAPE
FLOODLIGHT
OUTDOOR LIGHTING
A small architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Supplied standard with designer optics, providing superb color-over-angle consistency. Available with integrated Dali control, 0-10 V dimming or as non-dimmable. DIMENSION: 235(L)*68(W)*228(H)mm.
