IGUZZINI

Pendant LED luminaire with direct/indirect beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); luminaire incl. white canopy (110mm x 65mm x 36mm) with transparent feeder cable as well as cable hangers and quick-release clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 32W – Low Power; Dimensions of the profile channel (LxWxH): 1411mm x 50mm x 80.5mm; luminaire's weight is approximately 4200g; CCT 3000K with a System Luminous Flux of 3649lm; high color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting .The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT. High efficient LED package achieving up to 185 lm/W

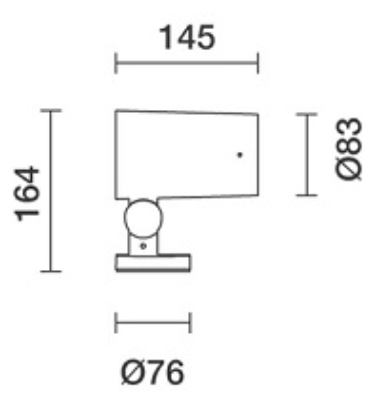

iGuzzini 508A is an adjustable spotlight with adapter for installation on a base or electrified track. LED lamp with C.O.B. (Chip on board) technology, -CRI90- high colour rendering and 2700K tone.Die-cast aluminium body with thermoplastic rear cap and front ring (Mass-Balance). The product can be rotated by 360° around the vertical axis with a mechanical lock and tilted by 90° relative to the horizontal plane.

Inground walk over fitting. Recessing depth 125 mm. IP rating IP 65 IP67.Body made of BRAL, an aluminium bronze alloy with exceptional resistance in outdoor environments, is combined with black extruded aluminium components, specially anodized to prevent the formation of galvanic currents responsible for oxidation processes. Suitable for applications in C5 environments with high humidity and/or marine exposure (according to UNI EN ISO 9223:2012).Recessing box in polypropylene.
