MEYER

LINEAR GRAZER

OUTDOOR LIGHTING

ECOLINE_MINI_MODULAR_8 768 056 009

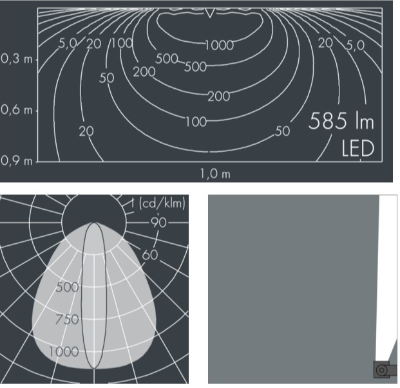

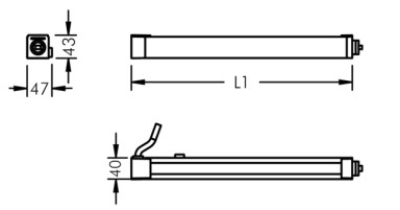

The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Colour: silver grey , all exterior parts are stainless steel, polycarbonate cover, with partial frosting for uniform light diffraction, silicon gasket, with connection coupling and 3‑pin connector on the right, tilt range: 220°, cable gland: M16 with 1 m cable H05RN‑F3G1, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 20° / 88°, luminous flux: 585 lm, wattage: 11 W, delivered lumens 53 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,025 m², dimensions (L×H×W): 641 × 43 × 40 mm, weight 1.5 kg

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

585LM/641mm

Finishing

SILVER GREY

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.860 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68, IK10.

LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

Noventa 3.5 is a suspended, wall/surface or recessed luminaire that creates an architectural 90 degree corner. For two-sided illumination around a perimeter, use a wall/surface model. Hang a suspended “L” model for illuminating a wall surface and to provide ambient downlight. Hang a suspended “diamond” model to provide a wide swath of direct ambient downlight. Contact factory for recessed options.
