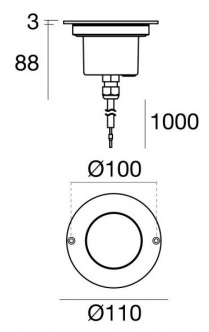

SUELO316 RXF_76044W30_7W-27°
Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device luminaire is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68, IK10.

Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
736LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.

WE-EF
WALLWASHER
OUTDOOR LIGHTING
Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. PMMA lens. Silicone rubber gaskets. 1.2 m of flexible PVC-free cable. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. DALI interface.
PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK10

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 x 44 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
