IGUZZINI

PROJECTOR LIGHT

OUTDOOR LIGHTING

EP55

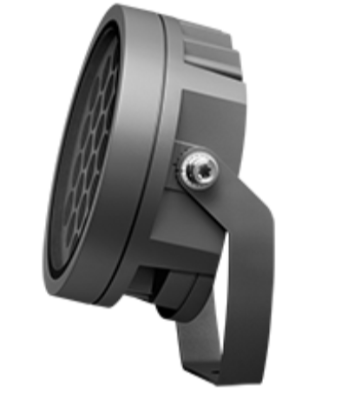

EP55: Spotlight with bracket - Warm White LED - On/Off - Very Wide Flood optic

Life Time: 100,000h - L90 - B10 (Ta 25°C)/Life Time: 100,000h - L90 - B10 (Ta 40°C)/Intervallo temperatura ambiente: from -25°C to 50°C./Number of optical assemblies: 1/Optical assembly Characteristics Type 1:/Light Output Ratio (L.O.R.) [%]: 76/Number of lamps for optical assembly: 1/Lamp code: LED

Floodlight designed to use Warm White LED lamps with a Very Wide Flood optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

Specification

Power

14W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1398LM

Finishing

GREY

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNIOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

Meet the iconic Titanium G2. High-performing with a deep recessed design, the downlight series is low-glare with a UGR rating of <16. With a CRI97+ variation, a wide range of mounting options, and optical accessories, the Titanium G2 is the perfect solution for general lighting needs in commercial and residential projects. The ingress protection degree is IP44.
