XAL

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

ARY SUSPENDED_049-5231418F 005-3511017 002-90732

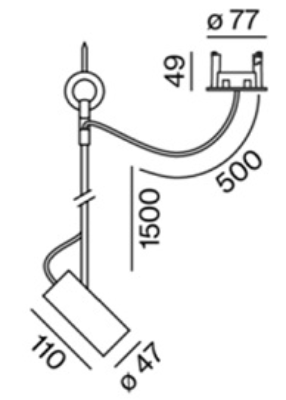

Decorative suspended luminaire in aluminium; surface black powder coated; height adjustable U-profile pendant rod suspension (black) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (black) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows;

Specification

Power

10.3W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

688LM

Finishing

BLACK TRIM / BLACK REFLECTOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 40 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 2953 lm, wattage: 37 W, delivered lumens 80 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,02 m², dimensions (L×H×W): 152 × 120 × 152 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
