Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

MODOC_R_C00582WHMWF_2700K-51°

Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Specification

Power

26W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

2985LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

1-10V DRIVER

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2202 lm, with a 115.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.6 kg. The total absorbed power is 21 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

RECESSED DOWNLIGHT

INDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Matt safety glass Silicone gasket Reflector surface made of pure aluminium Optical silicone lens · BEGA Hybrid Optics® 2 mounting holes ø 4.3 mm Distance apart 76 mm 1 cable entry for mains supply cable up to ø 10,5 mm Connection terminal 2.5@ Earth conductor connection BEGA Ultimate Driver® LED power supply unit 220-240 V x 0/50-60 Hz DC 176-264 V BEGA Thermal Switch® Temporary thermal shutdown to protect temperature-sensitive components Safety class I Protection class IP 65 Dust-tight and protection against water jets Impact strength IK07.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 35 x 35 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

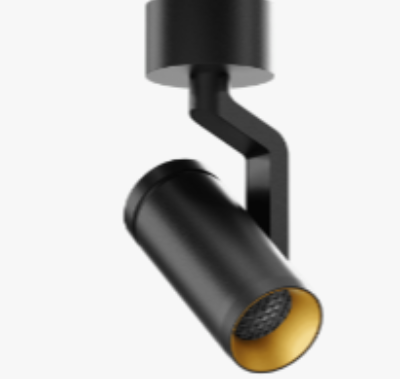

LIGHTFORMS

SURFACE TRACKLIGHT

INDOOR LIGHTING

This track spot is available in a range of body and baffle colours and, with its classic form, the style can fits into most applications. The inbuilt driver maintains its minimal design while the bespoke heatsink housing ensure long lifetime. The premium LED chip and polycarbonate optics provide a range of beam angles and CCT and CRI outputs.
