LINEALIGHT

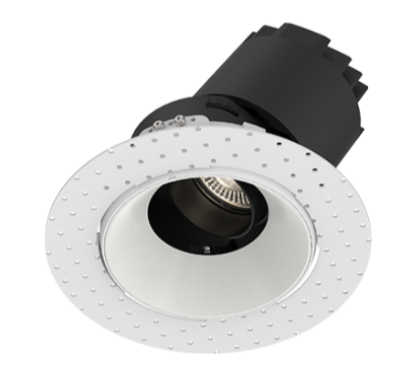

Round recessed trimless downlight (Easy Installation) made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; System Power 21W; measurements Ø96mm x 131mm; ceiling cutout of Ø108mm with a trimless mounting; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1600lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min.

Flood light luminaire body and bracket made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion. Anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. The ingress Ingress protection degree is IP66,IK09. DIMENSIONS: Ø230x337x137 mm.

IP69. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens with opal diffuser. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable, including sealable junction box SJB. Linear PMMA LED lens. Factory installed LED circuit board. LED board can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment.
