Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

MODOC_R WW_C00786WHMWW_3000K

Single emission recessed downlights for indoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Specification

Power

37W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

689LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

1-10V DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

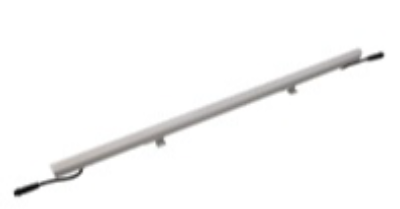

Single emission lines for outdoor application. The warm white LED light source is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 5.5 kg. The total absorbed power is 51 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99771 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

Ultra-compact Zero 12 recessed fixed with a depth of 12mm fits in the shallow ceiling void; Zero 12 recessed mini and TwINO are adjustable with a simple magnetic fixture design that allows free angle adjustment in all directions. Tiny yet mighty this ultra-miniature recessed spot is Ø12.5mm in size. High-intensity values remain almost invisible even from a shorter distance.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.8 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
