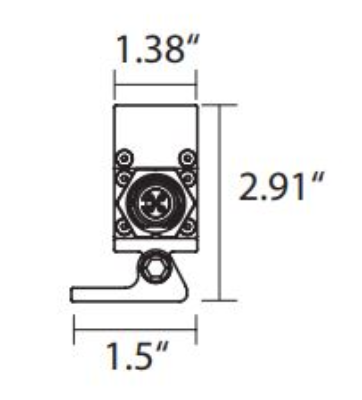

AL GRAZE AC_10*60

The AL Graze AC is a high power, low profile, outdoor linear LED fixture with a wired digital communication network. Length available in 305, 610 and 1220mm, it offers multiple configurations, including RGB, RGBW, and Dynamic White. Featuring a robust IP66 housing, onboard AC and DMX driver with RDM addressing, and linkable cable system, it is the perfect option for any structure that calls for indoor or outdoor linear grazing.

Specification

Power
36W/1.2M
Color Temperature
3500K
Light Source Type
LED
Lumen Output
1676LM/1.2M
Finishing
SILVER ALUMINIUM
IP Rating
IP66
Color Rendering
CRI 80
Driver
0-10V DRIVER

See more

SPARK
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING

Outdoor Surface mount up/down wall light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for backyard, balcony, garden and outdoor wall application.

SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING

Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

SPARK
TRACKLIGHT
INDOOR LIGHTING
Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
SIMES
BOLLARD
OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Shift Pole: Aluminium pole Ø 102 H 3000mm included. Pole must be fixed to the anchoring base (S.1469) to be securly buried in concrete or to the square plate (S.1468).

WIRING

Supply 0.2m cable section type H05RNF . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths.. Isolation: CLASS II .
